Variable Topology Trusses (VTT) are a new class of self-reconfigurable robot. A VTT consists of linear actuators for the truss members, which are joined at the truss nodes by a special reconfigurable spherical joint. The VTT can reconfigure by merging and splitting these truss nodes.

This article covers the contributions of our journal article about VTT in ASME JMR Aug 2021, which is an extended version of the original paper presented at IROS 2017. Hence, this article is an updated version of our previous article.

A Variable Topology Truss extends the class of variable geometry truss robots by allowing them to rearrange the way their truss members are connected to each other. This increases the versatility of the robot; it can adapt its topology to match the required task. For example, we envision a VTT system used in a disaster response scenario. First, the VTT would be transported to the disaster site in a compact storage configuration. The VTT would reconfigure into a walking or rolling topology and move into a collapsing building. Then, the VTT would reconfigure into a shoring structure to support the building, preventing further collapse while first responders search for survivors. Once the search is complete, the VTT could extract itself and move on to the next building.

Two key technologies that enable VTT are the spiral zipper linear actuator and the reconfigurable VTT joint. In the journal article, we present a new version of the VTT joint that enables the reconfiguration capability. It uses a 12-bar planar linkage to achieve a large maximum angle and has a new latching system with an increased area of acceptance. We use this design to demonstrate the merge-and-split capabilities that allow topological reconfiguration.

The above images show a demonstration of merge-and-split reconfiguration. We start with an octahedron with two internal nodes. The internal nodes move to have a coincident virtual center and undock their joint chains. Then, the joints rearrange their connections to form two different nodes. Finally, the two new nodes move apart to show that the truss connectivity has changed. In a truss with more members, this process could be repeated several times to greatly change the truss topology.

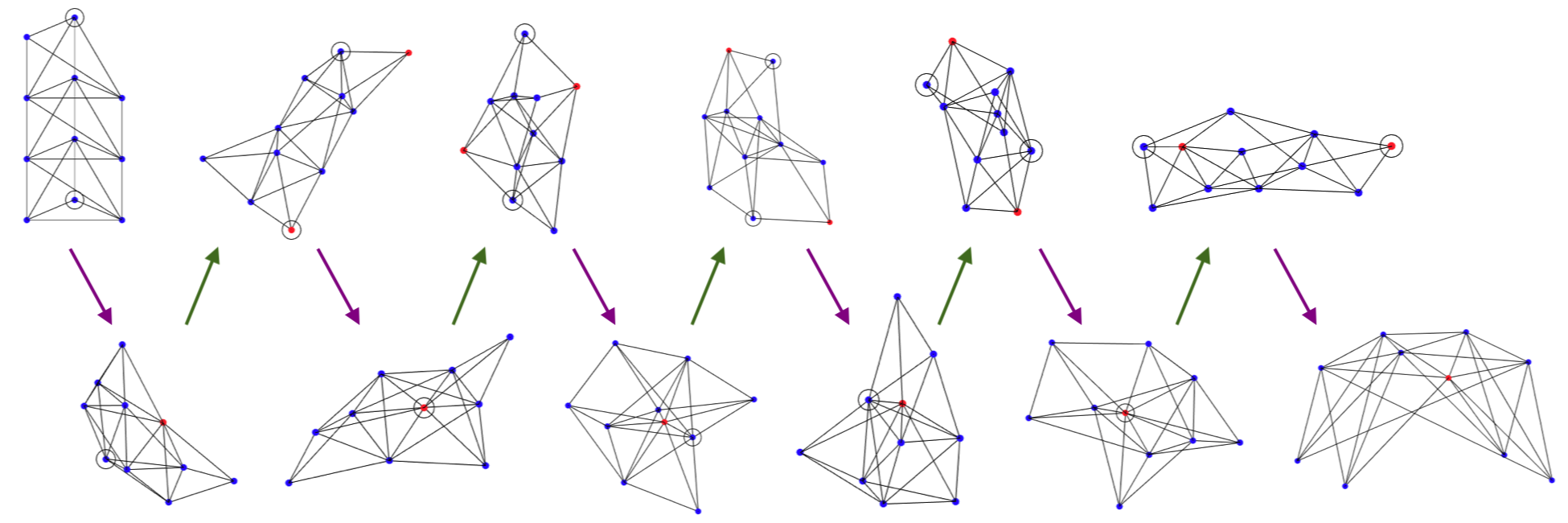

In the journal article, we investigate the capabilities of this reconfiguration action in greater detail. Given a truss topology, we can enumerate all of the possible reconfiguration actions. From this, we can iterate through truss topologies and build a network that describes which topologies are reachable through this reconfiguration mechanism. For example, we can show that it is possible to transform from the tower topology pictured above to the dome topology through a sequence of no fewer than 11 merges and splits.

The merge-and-split mechanism requires at least 18 members to achieve meaningful topological reconfiguration. So far, we have characterized the reconfiguration capabilities for all VTTs with fewer than 30 members, which encompasses more than 80 million truss topologies.
