Modboat: A Single-Motor Modular Self-Reconfigurable Robot

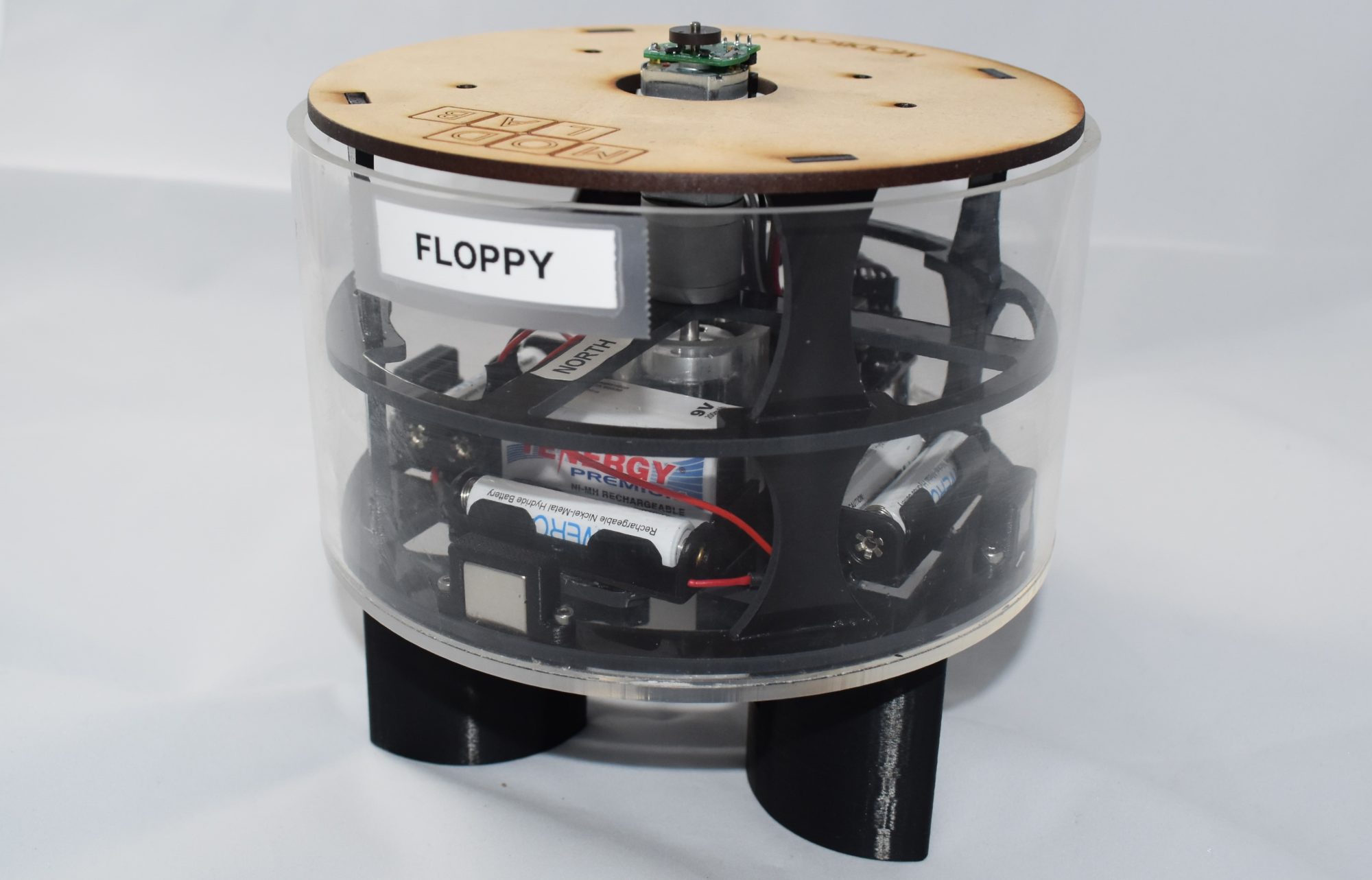

The Modboat is an inexpensive, oscillating surface-swimming robot powered by a single-motor and built from the ground up for low-cost modular self-reconfiguration. Very little work has been done on surface-swimming modular self-reconfigurable robotic systems (MSRRs), and to date it has heavily relied on holonomic modules. The Modboat aims to challenge that paradigm and develop aquatic motion, docking, and self-reconfiguration while being limited to only a single actuator.

The Modboat is featured in a number of publications (listed at the bottom of this page), but its design and actuation method remains unique and relatively unknown in the literature, so this page provides some extra details on the design.

Actuation Design

The Modboat consists of two bodies, shown in the exploded view below:

  1. A large, cylindrical top body that contains docking hardware, electronics, and an ESP32 microprocessor.
  2. A passive bottom body that contains a tail and two unactuated flippers that are free to rotate.

The two bodies are mechanically linked by the Modboat’s single DC motor, whose body is mounted to the top body and whose shaft is linked to the bottom body. Conservation of angular momentum means that – when the motor is actuated in the water – the two bodies rotate relative to one another, and the inertia of the top body can be used as a base of support to swing the bottom body.

Exploded view of the Modboat, showing the top body and the bottom body as separate pieces. The bottom body is rotated relative to the top body by the motor (gray, center of top body), while the two flippers (white, bottom of bottom body) rotate passively and are shown in the fully open positions.

When the bottom body rotates in the water, drag from the surround fluid causes the leading flipper to open against a hard stop, at which point it acts as a drag plate and produces thrust for the Modboat as a whole. If the motor is oscillated, each of the two flippers opens in turn to generate a paddling motion, which is observed from below in the following video:

View from underneath of the Modboat paddling motion caused by oscillation of the motor. The Modboat is mounted in the water in such a way as to allow full rotation without allowing translation.

Various control methods can be achieved by tuning the parameters of the motor’s oscillation:

  1. The frequency in either direction
  2. The amplitude of the oscillation
  3. The centerline of the oscillation

Our research efforts on the motion of individual Modboats have focused on the effects of varying these individual parameters. In particular, the frequency of oscillation was considered in [2] and [3], the centerline in [4] and [5], and the amplitude in [6].

Docking Design

The Modboat design includes a number of aspects designed specifically for modular self-assembly and reconfiguration:

  1. The bottom body is (almost) entirely encapsulated in the footprint of the top body (see underview video above), which prevents mechanical interference between the flippers of any two boats.
  2. Four magnets are mounted at the cardinal points inside the Modboat top body, which allow the round Modboats to form a square lattice when docked to one another.

The only exception to the mechanical encapsulation of the bottom body is the tip of the tail. This is an intentional decision to allow undocking from neighboring modules without an additional actuator. Docking is accomplished through passive magnetic attraction; undocking can be achieved by having two modules bring their tails together, which forces the two top bodies apart and breaks the magnetic bond.

A video of a docking procedure and a composite image of two Modboats docking is shown below. Current [6] and future work focuses on controlling the resulting structures to swim as a coordinated group, especially since the protruding tail tip introduces restrictions on allowable waveforms when undocking is not desirable.

A video of a single mobile Modboat docking to a single static target Modboat. The mobile Modboat turns by 90 degrees immediately before docking to align itself for future operation.
A composite image of a Modboat docking to another Modboat target, highlighted with a red circle. The orientation of the mobile Modboat at each step is shown with a red arrow, indicating that it makes a 90 degree clockwise turn immediately before docking to align itself in its connected state.

Publications

  • [PDF] [DOI] G. Knizhnik and M. Yim, “Design and Experiments with a Low-Cost Single-Motor Modular Aquatic Robot,” in 2020 17th international conference on ubiquitous robots (ur), Kyoto, Japan (Virtual), 2020, p. 233–240.
    [Bibtex]
    @inproceedings{GK:MY:20,
    address = {Kyoto, Japan (Virtual)},
    archivePrefix = {arXiv},
    arxivId = {2002.01918},
    author = {Knizhnik, Gedaliah and Yim, Mark},
    booktitle = {2020 17th International Conference on Ubiquitous Robots (UR)},
    doi = {10.1109/ur49135.2020.9144872},
    eprint = {2002.01918},
    pdf = {https://www.modlabupenn.org/wp-content/uploads/2022/02/Knizhnik_UR_2020.pdf},
    pages = {233--240},
    title = {{Design and Experiments with a Low-Cost Single-Motor Modular Aquatic Robot}},
    url = {https://ieeexplore.ieee.org/document/9144872},
    year = {2020}
    }
  • [PDF] [DOI] G. Knizhnik, P. Dezonia, and M. Yim, “Pauses Provide Effective Control for an Underactuated Oscillating Swimming Robot,” Ieee robotics and automation letters, vol. 5, iss. 4, p. 5075–5080, 2020.
    [Bibtex]
    @article{GK:MY:20a,
    author = {Knizhnik, Gedaliah and Dezonia, Philip and Yim, Mark},
    doi = {10.1109/LRA.2020.3005383},
    pdf = {https://www.modlabupenn.org/wp-content/uploads/2022/02/Knizhnik_RAL_2020.pdf},
    issn = {23773766},
    journal = {IEEE Robotics and Automation Letters},
    month = {oct},
    number = {4},
    pages = {5075--5080},
    title = {{Pauses Provide Effective Control for an Underactuated Oscillating Swimming Robot}},
    volume = {5},
    year = {2020}
    }
  • [PDF] [DOI] G. Knizhnik and M. Yim, “Docking and Undocking a Modular Underactuated Oscillating Swimming Robot,” in 2021 ieee international conference on robotics and automation (icra), Xi’an, China, 2021, p. 6754–6760.
    [Bibtex]
    @inproceedings{GK:MY:21,
    address = {Xi'an, China},
    author = {Knizhnik, Gedaliah and Yim, Mark},
    booktitle = {2021 IEEE International Conference on Robotics and Automation (ICRA)},
    doi = {10.1109/icra48506.2021.9562033},
    eprint = {2102.12909},
    pdf = {https://www.modlabupenn.org/wp-content/uploads/2022/02/Knizhnik_ICRA_2021.pdf},
    pages = {6754--6760},
    title = {{Docking and Undocking a Modular Underactuated Oscillating Swimming Robot}},
    year = {2021}
    }
  • [PDF] [DOI] G. Knizhnik and M. Yim, “Thrust Direction Control of an Underactuated Oscillating Swimming Robot,” in 2021 ieee/rsj international conference on intelligent robots and systems (iros), Prague, Czech Republic (Virtual), 2021, p. 8665–8670.
    [Bibtex]
    @inproceedings{GK:MY:21a,
    address = {Prague, Czech Republic (Virtual)},
    author = {Knizhnik, Gedaliah and Yim, Mark},
    booktitle = {2021 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS)},
    doi = {10.1109/IROS51168.2021.9636778},
    pdf = {https://www.modlabupenn.org/wp-content/uploads/2022/02/Knizhnik_IROS_2021.pdf},
    isbn = {978-1-6654-1714-3},
    pages = {8665--8670},
    title = {{Thrust Direction Control of an Underactuated Oscillating Swimming Robot}},
    url = {https://doi.org/10.1109/IROS51168.2021.9636778 https://ieeexplore.ieee.org/document/9636778/},
    year = {2021}
    }

In Press

G. Knizhnik, P. Li, X. Yu, and M. A. Hsieh, “Flow-Based Control of Marine Robots in Gyre-Like Environments”, 2022 IEEE International Conference on Robotics and Automation (ICRA). Philadelphia, PA. In Press.

G. Knizhnik and M. Yim, “Amplitude Control for Parallel Lattices of Docked Modboats”, 2022 IEEE International Conference on Robotics and Automation (ICRA). Philadelphia, PA. In Press.
